Sending Faxes

Other Related Topics...

Sending a Notes mail message to a fax number requires that your message be addressed in the Fax To: field with a fax number rather than an email address.

Faxes may be addressed either by using:

Faxes may also be sent to user Groups specified in the Lotus Notes Address Book.

Text entered in the Subject box in a Notes mail message appears in the Notes section of the fax cover sheet. Text entered in the body of the mail message will appear as the body of the fax. Attached files will be converted to fax images and appended to the fax. Attachments are converted to fax format and added to the end of the fax in the order they are listed. To send the fax message to e-mail addresses in addition to fax addresses, click E-mail in the Action bar. When the Notes Mail Address dialog box opens, select one or more e-mail addresses.

FaxPress/Notes Inbox and Memo Features

The Domino/FaxPress Integration Script installation creates and distributes two new fax-related Inbox and Memo features to all Notes mail users.

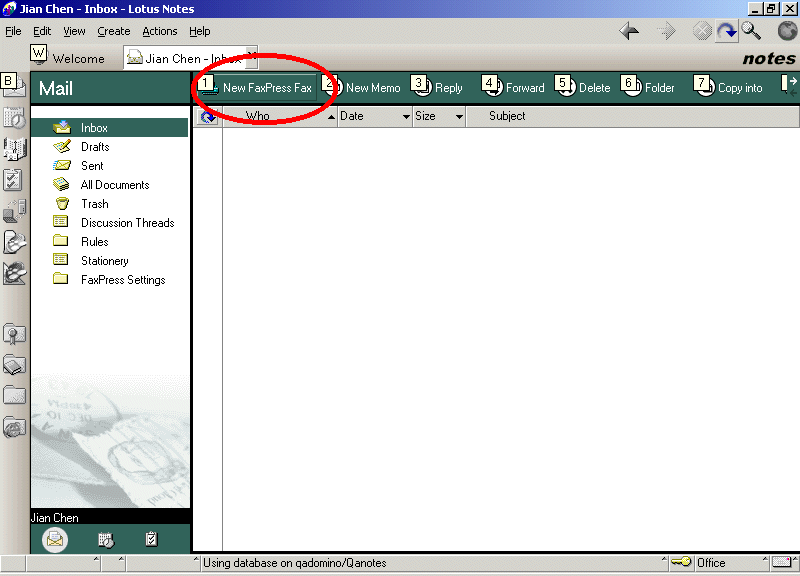

The Lotus Notes Inbox includes the New FaxPress Fax fax feature, the fax-enabled equivalent of the Lotus Notes New Memo feature.

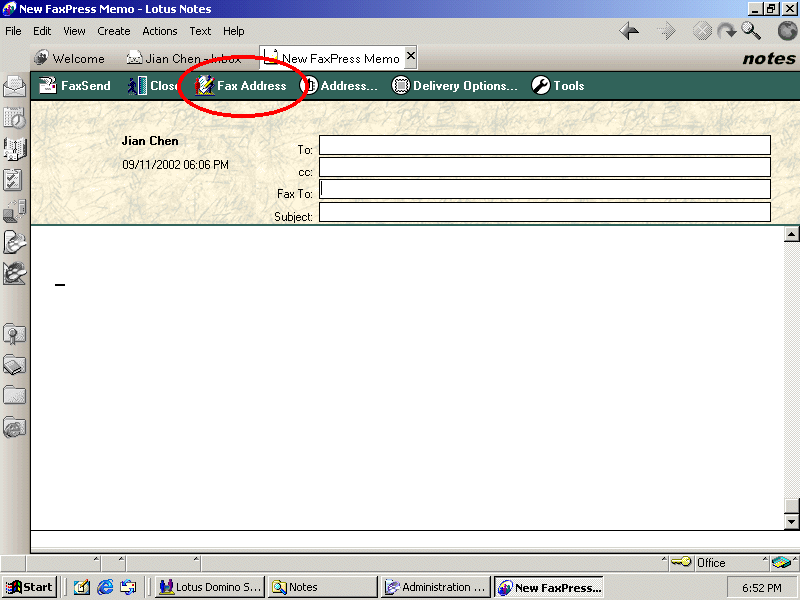

The fax-enabled FaxPress Memo - Lotus Notes includes a new FaxTo: field in addition to the standard Notes To: , cc:, and Subject fields.

Use the Fax To: field specifically for fax addressing.

Faxes may be addressed by using:

axes may be addressed by using:

Sending Faxes Using Address Book Entries

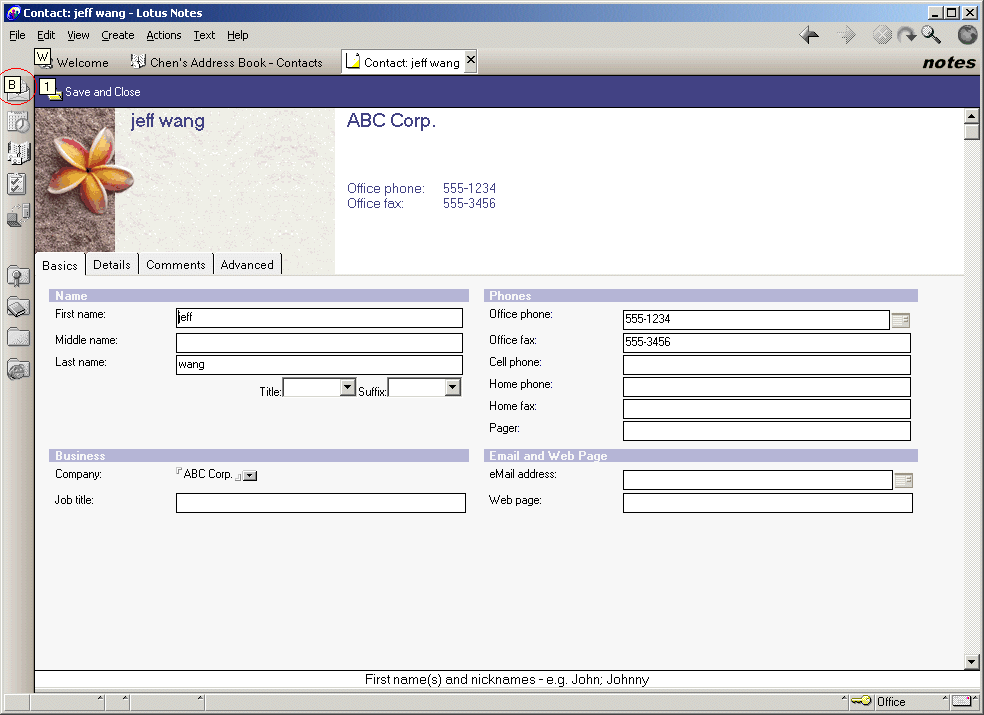

To create address book entries, select the Address Book icon on the left, then select Contacts>Add Contacts from your Lotus Notes inbox, then enter a fax number in the Office Fax field. The Home Fax field does not support faxing via the FaxPress.

Home Fax field entries cannot be used to send faxes via the FaxPress. Address Book entries used to send faxes via the Lotus Notes Gateway must contain an Office Fax number.

If the Company name or Office Phone Number fields are left blank in the Address Book entry, the FaxPress Fax Options may be used to provide that information for the fax cover page at the time the fax is composed. (See Using the FaxPress Select Fax To Options for more information on using the FaxPress Fax Options.)

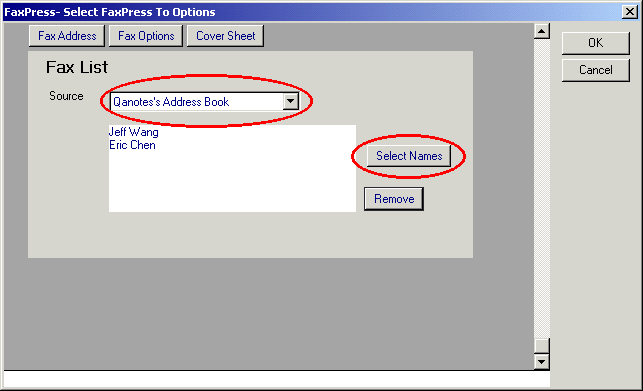

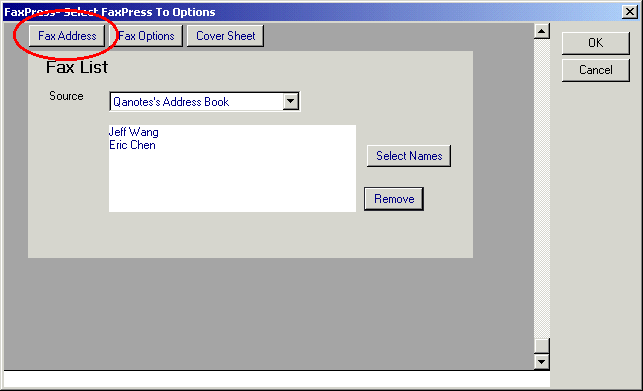

To use an address book entry to send a fax via the FaxPress Lotus Notes Gateway, follow these steps:

For a detailed explanation of features regarding the Fax Options and Cover Sheet options also included in the FaxPress Select To FaxPress Options, see Using the FaxPress Select Fax To Options.

Any fax sent to a Group name selected from the Notes Address Book’s list - Sales in the example above - will be sent to all of the members in that group who have fax numbers entered in the Office Fax field of the address book entry.

Using the FaxPress Select Fax To Options

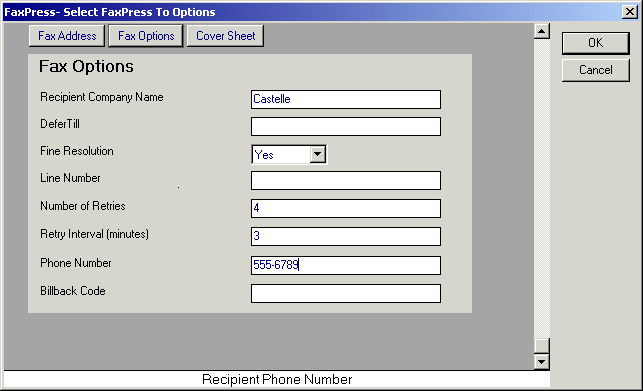

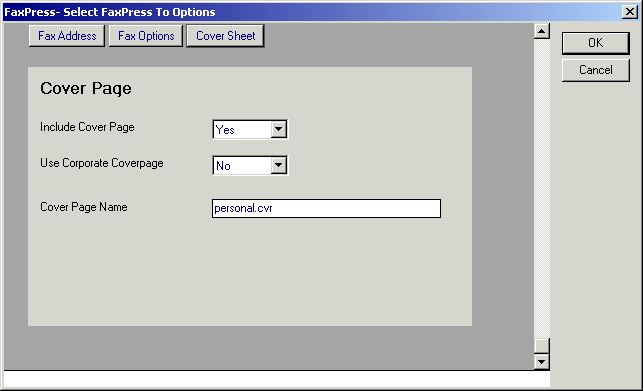

The FaxPress-Select FaxPress To Options window allows you to access your address books with the Fax Address option, customize fax sending settings with the Fax Options option, as well as specify cover sheet preferences using the Cover Sheet option.

This section specifically covers the features made available by the Fax Options and Cover Sheet options. The Fax Address’ addressing options are described in the Sending Faxes Using Address Book Entries. Take the following steps to set these options:

Recipient Company Name - enter the recipient’s company name. Company name can also be set in the Notes address book entry for the recipient.

Defer Til - specify a future time to send the fax (dd/mm/yyyy.)

Fine Resolution - select resolution preference or leave blank to use the default FaxPress server settings.

Line Number - Specify a line number. When FaxPress has more than one fax lines, this parameter is used to specify which fax line to use to send the outgoing fax. Normally, this parameter should be left blank and FaxPress will automatically search for an available fax line to send the fax. This parameter should be used only if the user is familiar with the FaxPress's line settings. Leave blank to use the default FaxPress server settings.

Number of Retries - Specify number of retries, or leave blank to use the default FaxPress server settings.

Retry Interval (minutes) - Specify retry interval, or leave blank to use the default FaxPress server settings.

Phone Number - enter the recipient company’s phone number. This is the recipient’s voice phone number (not the fax number) that will appear on the cover page. All parameters in the fax option template are designed for sending outgoing faxes to the recipient. Voice phone number can also be set in the Notes address book entry for the recipient.

Billback code - leave this field blank. Use the Fax Options settings available with each new fax to specify a Billback Code.

To send a fax message to e-mail addresses in addition to fax addresses, click E-mail in the Actions menu. When the Notes Mail Address dialog box opens, select one or more e-mail addresses.

Manual Addressing with the Domino/FaxPress Integration Script Installed

To send a fax without adding the recipient to one of your address books, use the FaxPress Lotus Notes Gateway manual addressing option. The manual addressing format described in this section applies only if the Domino/FaxPress Integration Script is installed. See Manual Addressing with the Domino/FaxPress Integration Script Installed for the manual addressing options provided if the Domino/FaxPress Integration Script is not installed.

To send faxes using the FaxPress manual addressing format, open New FaxPress Fax and enter recipient's fax address string in the Fax to: field. The fax address string format is defined as follows:

Recipient-name#Recipient-fax-number

e.g. walt whitman#408-852-8704

No fax job options are allowed in the fax address string. Fax job options, provided by the Domino/FaxPress Integration Script installation, are specified using FaxPress Options button in the tool bar after clicking on Fax Address. (See Using the FaxPress Select Fax To Options for more information.)

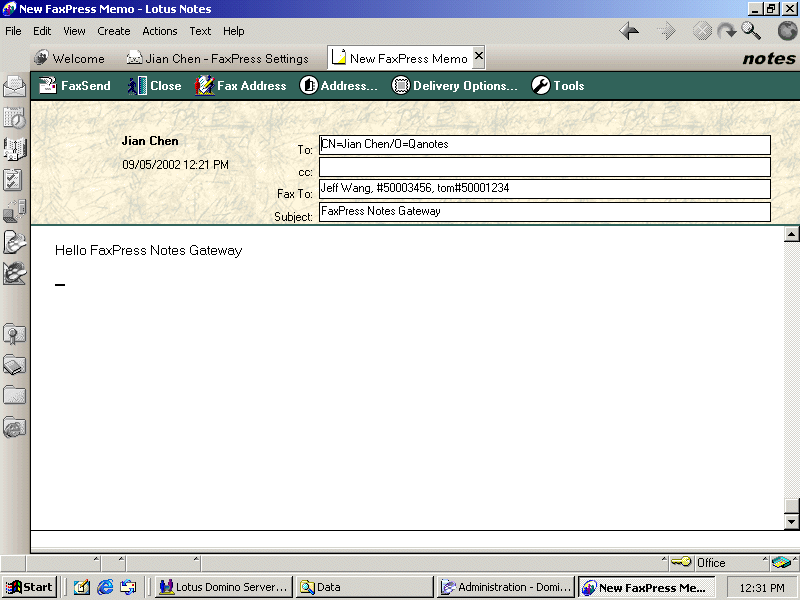

Notice in the Figure below that fax messages may be sent to both fax and email recipients simultaneously, as well as recipients with addresses entered manually or via your address book.

Sending Faxes without the Integration Script

Without the Domino/FaxPress Integration script installed on the Domino Server, the New FaxPress Fax button will not appear on the Notes client function bar. Notes clients can, however, still send faxes via the Gateway by manually addressing faxes according to the Notes Gateway’s email address string.

After FaxPress Lotus Notes Gateway has been installed and the gateway’s email account has been created, the Notes clients can directly send emails with attachments to the gateway’s email account. The gateway then polls this email account and sends all outgoing emails from that account as faxes via the FaxPress.

Manual Addressing without the Domino/ FaxPress Integration Script Installed

Using the email address string outlined here to address faxes allows users to include cover page information (i.e., the recipient’s name, company name, voice phone number, etc.), dialing instructions (i.e., PBX password), and FaxPress information (i.e., bill back code) according to key codes and characters set off by brackets { }.

This manual addressing format must be used to allow the iNotes Web Access Mail template to send faxes through the FaxPress.

The address string format is defined as followed:

Recipient-name#Recipient-fax-number{Key-code=Values,…}<gateway-account@domain>

Examples:

Tom Smith#1234567{r=f}<fpgate@castelle.com>

Tom#1234567{c=y,r=f}<fpgate@castelle.com>

Where “fpgate” is the Lotus Notes Gateway’s email account defined in the domain.

The key codes and characters used for the FaxPress Lotus Notes Gateway are the same as those used for the FaxPress SMTP Gateway.
